Sugar Plant Products

Sugar Industries are well flourished in any nation and forms the key sources in the economy of the country.

We offer a standard quality products required from inception stage to commercial production in most economical way for Sugar industries. Our products relavant to sugar industries are listed below :

Cane Handling Equipments :


Cane Unloader :

Sugarcane Unloader can be operated by following methods -

  • Mechanically operated
  • Hydraulically operated

In both operating methods there are Two main types -

  • Sling Type
  • Grab Type

It can be designed as per the site conditions or client's requirement

  • Two Motion
  • Three Motion
Feeder Tables :

It can be designed as per the plant's capacity and client's requirement. Some of the main popular sizes are 6 M wide and 7 M in length & 8 M x 8 M or 4 M x 5. It will be installed in a manner so that it is at reverse angle of 3o with horizontal and rises forward the cane. We also provide Feeder Tables with washing arrangement and sloping towards the carrier. We mainly use the quality components like Chains, Gear boxes, Motors and VFDs. For the chain we use appropriate breaking load of the chain ranging from 30,000 Kgs to 60,000 Kgs.

To save the Power consumption (Energy) we use VFDs.

Cane Carriers :

Completely made of steel, our sugarcane carriers have adequate column and support. These cane carriers are available with ample carrier depth that facilitates to feed the required capacity. These machines are highly durable, which can be further customized as per the need of the customer.

Mill House Equipments


Cane Chopper :

Previously Cane Kicker or Cutter were used. To eliminate the drawbacks of Kicker and Cutter this new device is introduced and run successfully with best performance at various sugar mills.

To avoid the jamming & to feed equally to Fibrizor. (It is creating uniform Cane Mat / layer)

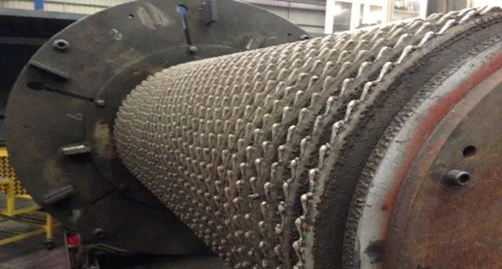

Swing Type Cane Fibrizor :

These are designed to achieve P.I. of 85 and above and designed for very easy installation on existing cane carrier with pocketed Anvil having about 1650 wrap angle. Hubs are specially designed for self balancing and the rotor is placed such as to provide maximum grating arc, totally avoiding uncut cane pieces. This also provide safety to Fibrizor from foreign materials coming with cane.

Rotary Juice Screen :

  • Reduced deposits of bagacillo and sand mud particles in the juice heaters, juice sulphitors, clarifiers etc. Especially bagacillo deposits in the heaters will be less to a great extent thus reducing time and manpower for cleaning of juice heaters.
  • Improved colour of sugar due to - Reduction in colour formation due to bagacillo reaction with milk of lime at high temperature. - Clarity of clear juice improved.
  • Savings in chemicals (which otherwise would have reacted with bagacillo coming with juice).
  • Elimination of deposits of bagacillo particles on the sugar crystals in Vacuum pan, which will impart under colour with passage of time.
  • Improved efficiency of down stream processing equipment.
  • With increased efficiency of separating juice and bagacillo, more bagacillo will be going back to mills and from there to the boilers.
Operating Advantages :

  • Less space requirement on the mills.
  • On-line and automatic cleaning of the screen at preset interval is possible.
  • Less maintenance and no on-line adjustments, supervision is required.
  • No chocking of screens.
  • Lower power requirements.
  • Can work at reduced crush rate with same efficiency.
  • Eliminates the requirement of static screens and suitable locating the rotary screen also elements screw conveyer.

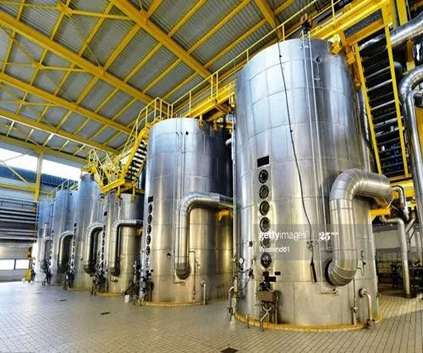

Energy Efficient Boiling House :


We manufacture superior quality of Boiling House Equipment, made from stainless steel. These industrial evaporaters are capable of withstanding high temperature and pressure. Our boiling house equipments are widely used for the production of high value natural cane wax and can be designed as per the specification of the customers.

  • Vapour Cells / Evaporators
  • Long Tube Rising Film Evaporators (Semikesteners)
  • Extra Low Head Vacuum Pans
  • Continuous Vacuum Pans
  • Juice Heaters
  • Vertical Crystallizers (Mono & Twin Type)
  • Air / Water Cooled Crystallizers

Sulphitation Equipments :


We supply complete range of shulphition equipment for sugar making machine that are used to add sulphur dioxide (SO2) or derivatives to process streams in a sugar industry. We have developed a fully induced draft solid sulphur burning and sulphitation system meeting all the latest environmental and safety standards. We provide range of Juice Sulphiters, Syrup Sulphiters and Sulphur Burners.

  • Continuous Juice Sulphiters
  • Continuous Syrup Sulphiters
  • Continuous Sulphur Burners

Lime Station Equipments :


We supply ultramodern Lime Station Equipments that are used grit removal equipment for sugar mill. These grit removal equipments are capable of separating even the micron size of grit. Our lime station equipments ensure low mud volume and less scaling at evaporators. High in efficiency, these equipments are available at the leading industrial prices. We also offer customised solutions as per the specification of the customers.

  • Continuous Juice Sulphiters
  • Continuous Syrup Sulphiters
  • Continuous Sulphur Burners

Our other products include: Steam Pipes & Fittings, Crushing Equipment for Sugar cane, Steam Boilers and Copper Tubes, Centrifugal Pumps and Tanks, Classifiers, Juice Heaters, Cane Carrier.
